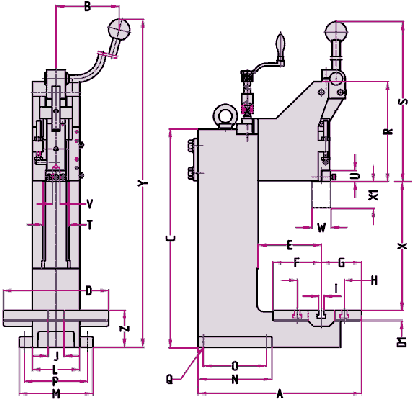

Rozměr
|
2,5 kN
HKP/E
|
2,5 kN
HKP/V
|
5 kN
HKP/V
|
8/12 kN
HKP/V
|
8/16 kN
HKP/V
|
50 kN
HKP
|
|
|
|
A
|
170
|
200
|
230
|
320
|
420
|
520
|
|
|
|
B
|
50
|
65
|
150
|
150
|
160
|
215
|
|
|
|
C
|
260
|
320
|
345
|
415
|
590
|
715
|
|
|
|
D
|
120
|
150
|
180
|
200
|
300
|
340
|
|
|
|
D1
|
12
|
22
|
15
|
21
|
25
|
30
|
|
|
|
E
|
70
|
90
|
90
|
120
|
160
|
200
|
|
|
|
F
|
55
|
60
|
60
|
93
|
130
|
150
|
|
|
|
G
|
40
|
40
|
50
|
75
|
100
|
120
|
|
|
|
H
|
/
|
/
|
/
|
/
|
100
|
100
|
|
|
|
I
|
10
|
10
|
10
|
10
|
10
|
12
|
|
|
|
J
|
25
|
25
|
30
|
40
|
80
|
80
|
|
|
|
K
|
25
|
25
|
30
|
40
|
60
|
60
|
|
|
|
L
|
50
|
58
|
80
|
90
|
120
|
165
|
|
|
|
M
|
86
|
90
|
130
|
140
|
160
|
215
|
|
|
|
N
|
75
|
110
|
115
|
140
|
160
|
200
|
|
|
|
O
|
/
|
85
|
95
|
120
|
130
|
160
|
|
|
|
P
|
70
|
74
|
110
|
120
|
144
|
195
|
|
|
|
Q
|
Ř 7
|
Ř 7
|
Ř 9
|
Ř 9
|
Ř 9
|
Ř 11
|
|
|
|
R
|
123
|
145
|
172
|
190
|
270
|
290
|
|
|
|
S
|
285
|
350
|
480
|
508
|
708
|
980
|
|
|
|
T
|
25
|
30
|
48
|
48
|
65
|
90
|
|
|
|
U
|
22
|
25
|
21
|
21
|
29
|
45
|
|
|
|
V
|
Ř 10 H7
|
Ř 10 H7
|
Ř 10 H7
|
Ř 10 H7
|
Ř 15 H7
|
Ř 25 H7
|
|
|
|
W
|
25
|
27
|
33
|
35
|
48
|
55
|
|
|
|
X
|
70-165
|
75-195
|
70-195
|
75-243
|
100-325
|
110-365
|
|
|
|
X1
|
0-32
|
0-42
|
0-40
|
0-45
|
0-56
|
0-15
|
|
|
|
Y
|
414-510
|
480-597
|
595-725
|
642-820
|
933-1160
|
1015-1275
|
|
|
|
Z
|
45
|
52
|
52
|
72
|
125
|
160
|
|
|
|
Síla v dolním mrtvém bodě
|
max. 5 kN
|
max. 8 kN
|
max. 14 kN
|
max. 20 kN
|
max. 32 kN
|
max. 55 kN
|
|
|
|
při přípustné tažné síle páky
|
max. 190 N
|
max. 190 N
|
max. 320 N
|
max. 340 N
|
max. 420 N
|
max. 430 N
|
|
|
|
Váha
|
7,5 kg
|
9,5 kg
|
19,5 kg
|
32 kg
|
79 kg
|
175 kg
|
|
|
